Addressing rapid handpump corrosion: the story of the Ghana Modified India Mark II

In 1983, I moved to live and work in Ghana – some 40 years ago now. Back then, I was the regional supervisor on the 3000 Well Maintenance Unit in Southern and Central Ghana which was funded by the German Development Service under the Rural Water Supply programme. The project was a pioneer of its time, and included drilling boreholes alongside the installation and testing of handpumps in six of Ghana’s regions, as well as the Nanumba district, Northern Region.

We initially installed India Mark II and Moyno pumps, before dropping the Moyno due to technical problems. However, we soon realised that the India Mark II pumps faced corrosion issues. Investigation and testing (as documented by Langennegger, 1989 and Langenegger, 1994) found that the Galvanised Iron components (rods and riser pipes), when installed in water with low pH, had a propensity to rapidly corrode – leading to discolouration of the water and affecting taste, but also causing the pumps to fail prematurely as the rods broke and riser pipes developed cracks and holes and even fell into the borehole. The envisaged idea of maintenance by communities, with assistance from mechanics who could reach villages by motorcycle, was simply not feasible with such installations. Another significant issue related to corrosion of hand pump parts was the water contamination and bad taste of the water. As a result, the water coloured the food and therefore caused the  population to stop using the borehole water and forced them to go back to unsafe water sources

We, therefore, had to seek alternatives. This involved field testing and collaborating with the Materials Testing Institute of the University of Darmstadt.

We looked into replacing the galvanised iron components with stainless steel. To ensure the pipes were light, we considered using 3 – 3.5 mm thick pipes, and used a threading that at the time was used in the drilling industry , known as the “rope thread”. Although Atlas Copco had patented this threading type at the time, it was later manufactured in India after the Atlas Copco design period (patent) ended.

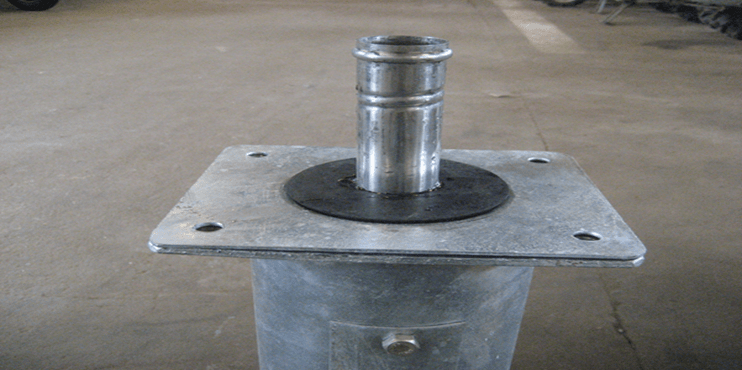

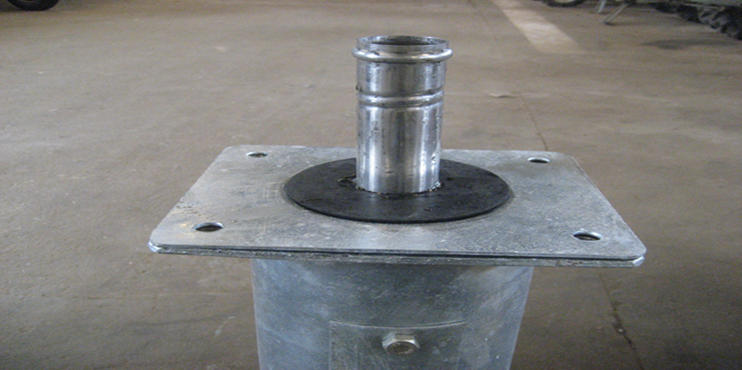

Figure 1: Rope thread (Claus Riexinger)

The pump rods presented some challenges as well, since the AISI Stainless Steel grade 316 that we were using was subject to breakage, including the threaded parts. In collaboration with our partners at the University of Darmstadt, we were able to find ways to make this grade of stainless steel more elastic by adding 2-3 % Molybdenum. Other issues with the rods related to the use of rolled thread, which we learned was more durable than cut thread. Incorporating these materials and techniques, we were able to reduce the rod diameter from 12 mm down to 10.8mm, resulting in lighter rods which did not corrode. The only drawback was that the threads could not be cut in the field, but this was not such an issue, as there was no need to cut them when they were installed, or upon maintenance.

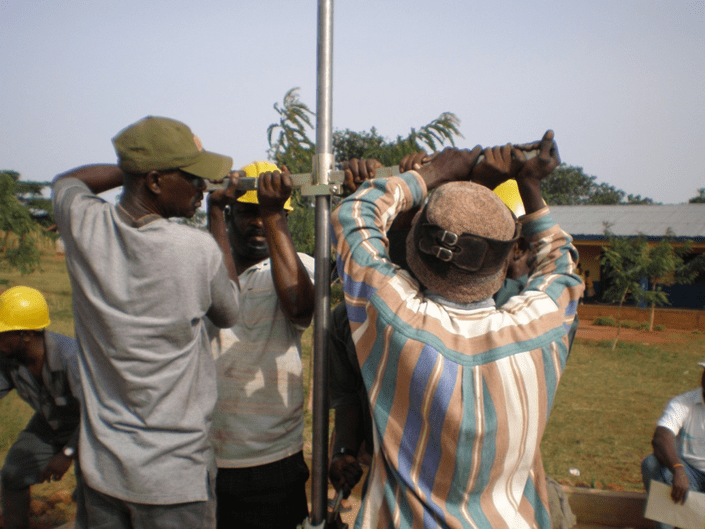

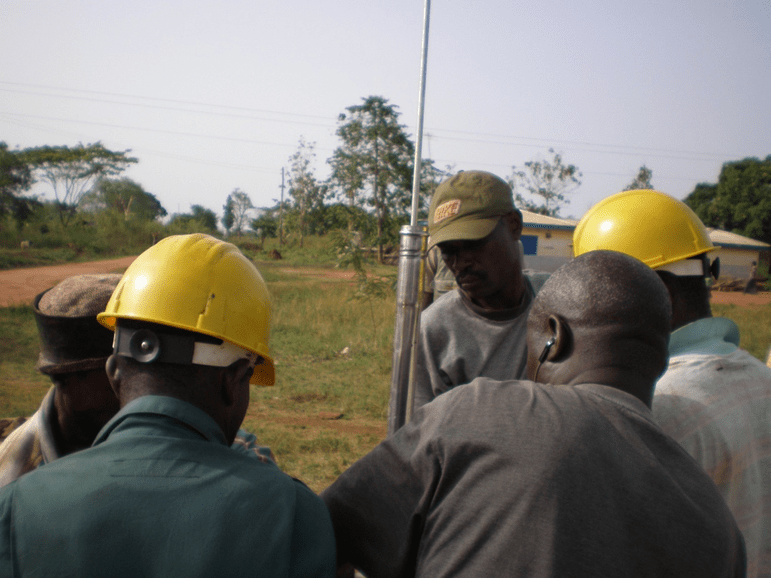

Figure 2: Pump installation (Claus Riexinger)

After switching to stainless steel riser pipes, we encountered another issue: -galvanic corrosion between the pipe and the water tank. This type of corrosion occurs when two dissimilar materials come into contact in solution. It was yet another challenge! Fortunately, we were able to solve this problem by replacing the existing flange with a new one made of stainless steel with an insulating gasket, into which the riser pipe could be screwed and prevent any further galvanic corrosion.

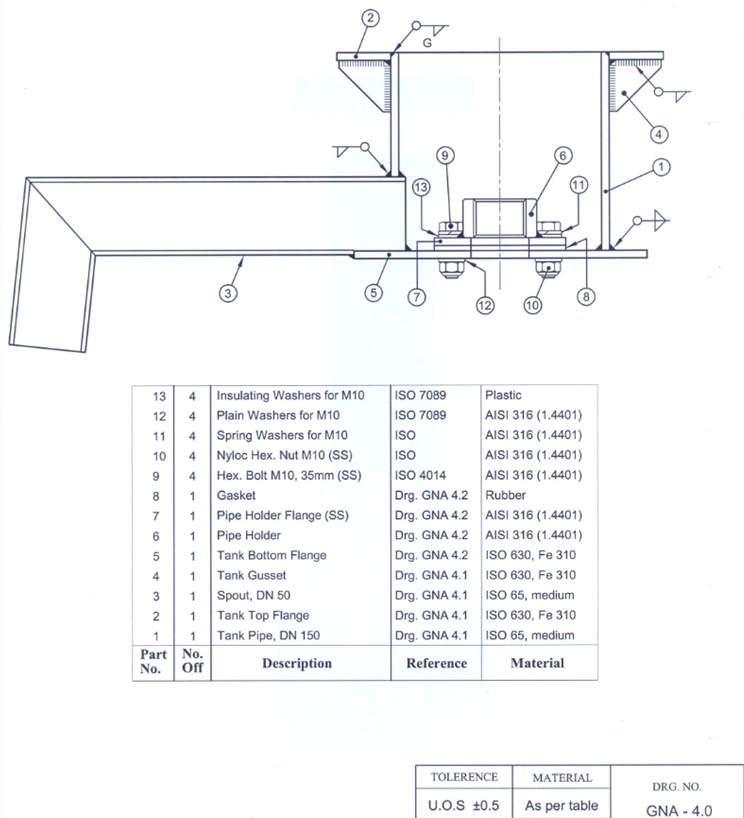

Figure 3: Ghana Modified India Mark II Handpump – water tank, spout and flange

After conducting extensive testing and collaborating with the University of Darmstadt over a period of around 4 years, we managed to solve the problem of rapid corrosion of handpumps in Ghana. The improved pump design came to be known as the Ghana Modified India Mark II, and was officially adopted by the Government of Ghana in the 1990s. Its specifications can be downloaded here.

Designing and publishing the specifications for a new pump is one thing, but the other is ensuring that these are adhered to.  A series of meetings with government, donors, and NGOs working in the water sector in the 1990s, led to the agreement to no longer use Galvanised Iron. All stakeholders were on board with the change.

Of particular importance was the tremendous support and buy-in of the major donor at the time – KfW (Germany). They agreed to pay for the increased costs of the Ghana Modified Pump on new installations, which at the time was about three times more expensive than the version using Galvanised Iron.  KfW also supported the rehabilitation and replacement of the pumps that had previously been installed using Galvanised Iron. As a result, we were able to remove and replace the corroded installations systematically, rather than addressing the issue in a piecemeal manner.

It is estimated that over 4,500 Ghana Modified India Mark II handpumps had been installed in Ghana by the time I left the 3000 Well Maintenance Unit in 1992.  Anecdotally, I would say that 90% were working, and of the 10% out of use, they were down for maintenance/repair.

KfW took this design to Cameroon, while Danida took it to Burkina Faso and Zambia. I am not fully aware of what happened next, but I do know that ensuring the quality of stainless steel was a problem in Burkina Faso.

I am very pleased to see that Ghana Modified India Mark II handpumps are now available through the Rural Water Supply Network (RWSN), and hope that these can be of use to other countries that are struggling to overcome the rapid handpump corrosion problem.

Figure 4: Example factory inspection Modified India MKII (Claus Riexinger)

However, I have a work of caution too. Although specifications, standards, and clear procurement documents are essential, they are rendered meaningless in the absence of inspection. During my time with the 3000 Well Maintenance Unit and later as an independent consultant, I traveled to India and other places for pre-shipment inspections. I also oversaw the rejection of consignments from India and Europe due to poor quality or manufacturing mistakes. And so, I urge all of you involved in handpump procurement and installation to make sure that you ensure the quality, especially through inspection and material testing.

Ghana Modified India Mark II Drawings and Specifications

More information about Ghana Modified India Mark II (external website)

About the author: Claus Riexinger is a rural WASH expert and freelance consultant with over forty years of experience in development cooperation with Government organisations, private companies, and development agencies mainly in Botswana, Lesotho, Malawi, Germany, India, Tanzania, and Ghana.

Photo credits: Claus Riexinger

In Memoriam: Ken McLeod – India Mark II development lead

en McLeod, who died of cancer in Cairns, Australia, on January 23rd at the age of 88, was recruited by Unicef to support India’s village water supply programme from 1974-1978, and played a pivotal role in the development of the India MK II hand pump.

by Rupert Talbot (former UNICEF and past Chair of HTN/RWSN)

Remembering Ken

Ken McLeod, who died of cancer in Cairns, Australia, on January 23rd at the age of 88, was recruited by Unicef to support India’s village water supply programme from 1974-1978, and played a pivotal role in the development of the India MK II hand pump.

The Government of India’s fourth, five year development plan (1969-1974) envisaged the ambitious goal of providing drinking water in the hard rock, drought prone regions of the country, using innovative down-the-hole-hammer drilling and deep well hand pump technology. Drill rigs were to be imported by Unicef and locally made, cast iron hand pumps, supplied and maintained by Government. In 1974, at the end of the plan period, hand pump surveys concluded that 75% of some 40,000 installations were not working. The viability of drilling and hand pump technology was in question and there was the real prospect of UNICEF, the Government of India’s main partner, withdrawing support. The programme was in serious crisis.

Ken McLeod, his 1942 Jeep, and Myra who designed the first India MK II hand pump poster, New Delhi, 1976 (Photo: Rupert Talbot)

Water well drilling was virgin territory for Unicef in the early 1970s and Unicef’s Executive Board had been divided over the decision to invest in such costly technology in the first place. It was now faced with the hard option of either scrapping the programme or keeping faith. It was a close run thing. Fortunately, the ‘pro’ lobby won with the eminently wise decision to halt the supply of drill rigs until the hand pump problem was fixed. Which is where Ken McLeod comes in.

Ken was a pragmatic, no–nonsense, straight talking, tell-it-as-it-is Australian with a diverse engineering background which ranged from marine and civil engineering to blast hole and water well drilling with down-the-hole-hammers. He had an innate sense of what would probably work and what wouldn’t. Obstinacy was also a hallmark. A serious asset as it turned out. Once he had made up his mind it was difficult to persuade him otherwise. And he had a droll sense of humour. His repertoire of stories and anecdotes are legendary within the water well fraternity. It would seem that seriousness of purpose combined with good humour are prerequisites for successful development enterprises. Ken had both these qualities in spades.

Over the course of the next 4 years it fell to Ken to identify, coordinate, argue with and cajole, myriad organisations and individuals to develop what became known as the India MK II hand pump. This was an extraordinarily complex, collaborative venture, involving pioneering NGOs in Maharashtra, birth place of the fabricated steel Jalna, Jalvad and Sholapur pumps, spearheaded by Raj Kumar Daw and Oscar Carlson (names participants in the RWSN Sustainable Groundwater Development Forum will be familiar with); WHO, who were independently trying to develop their own cast iron ‘Bangalore Pump’; The Government of India, whose programme was in dire straits and who were being prevailed upon by the country-wide hand pump industry to continue with the supply of their cast iron products (‘junk pumps,’ in McLeod Speak); and an engineering enterprise, Richardson and Cruddas, a Government of India undertaking tasked with making prototype and then production pumps. It took a McLeod to handle all of that.

Ken McLeod, Arun Mudgal (Richardson and Cruddas) and Rupert Talbot, MK II test area, Coimbatore, 1975. A ‘what to do ?’ moment after experimental cylinders had failed. (Photo: Rupert Talbot)

It is getting on for 50 years since it was eventually agreed by all parties that the Sholapur pump would form the basis of a new design and we were able to make and test the first dozen prototypes under the deep water table conditions of Coimbatore, Southern India. The fact that the India MK II then went successfully into mass production was largely due to Ken’s clarity of vision, direction, smart technical choices and perseverence.

I spoke with Ken for the last time two weeks before he died. We talked of those heady days of trying to get the MK II programme off the ground, of the internal arguments, external battles and technical problem solving in the field and in the factory.

His voice was strong and his mind as clear as a bell as he recalled people, places and events in great detail and he spoke warmly of those free spirits with their out of the box thinking who strove to make better hand pumps.

He was amazed to learn that there are now several million MK IIs in India alone and that it is exported to 40 or more countries. But hugely disappointed that the third party quality assurance procedures set up in his day and honed over the years to become the corner stone of the MK II programme under Ken Gray, had been allowed to slide back and that MK II look-a-like ‘junk pumps’ are being exported from India to Africa. That, we agreed, is a great tragedy.

There were many brilliant, dedicated people involved in the development of the India MK II. Ken never claimed any credit for it himself, but we all know who led the charge. It wouldn’t have happened without him. He was the right man in the right place at the right time. It needed his force of personality, tough and uncompromising ways, solid understanding of technical issues and absolute determination to get the job done in the face of industrial strength, bureaucratic wranglings. Aussie grit personified.

After Unicef, Ken McLeod worked with Shaul Arlossoroff and his UNDP-World Bank Hand Pumps Project, initially based in Nairobi then out of Australia, spending much of his time in China where I have no doubt he brought the same skills and energy to bear as he did in India.

Pragmatic and stoic to the very end he told me he hadn’t got long and was resigned to being on the ‘home stretch’ as he called it.

No funeral for Ken. No grave, no head stone, no epitaph. He wanted none of that. Instead, he has the lasting legacy of the India Mark II hand pump itself. Millions of them in fact.

Kenneth Robert McLeod, 1932 – 2020

RIP

Rupert Talbot
RWSN
26/1/20

In Memoriam: Arun Mudgal – a great handpump guru, mentor and friend

Reflections from 3 past leaders of HTN/RWSN on the loss of great friend.

(1) Rupert Talbot, former Chair of the Handpump Technology Network (UNICEF – retired)
(2) Dr Peter Wurzel, former Chair of the Handpump Technology Network (UNICEF – retired)
(3) Erich Baumann, former Director of the HTN/RWSN Secretariat (Skat – retired)

Rupert: “I am writing to let you know that Arun Mudgal died on September 13th after a long battle with Alzheimer’s.

“Although his many friends will surely regret his passing, those of us who visited him in recent times will be glad that he did not linger for longer; Alzheimer’s is a fearful illness.

“Arun was a familiar face to many within the HTN/RWSN fraternity. He made an unparalleled contribution to hand pump development in India from the 1970s and was instrumental in putting the first India MK II and MK III hand pumps into production.

“I would argue that the Mark II simply would not have happened without Arun. At least, not in the form that we would recognise today. He was absolutely key at Richardson and Cruddas, the Government of India engineering company that manufactured the prototype Mark II pumps, field tested them in the deep bore wells of Coimbatore and closely monitored their performance, translating technical problems encountered in the field into pragmatic, engineering solutions; Arun was the conduit between Unicef field staff and the factory that first made the pump.

“It was his persona – his charm and calm disposition combined with astute engineering expertise and manufacturing know-how – that led to the mass production of the India MK II. The development of the pump is best summarised in the Skat/HTN Working Paper WP 01/97 : ‘India Hand Pump Revolution: Challenge and Change‘. Written by Arun, it is probably the most authentic account of how the MKII and Mark III hand pumps came about.

“Arun’s legacy is much more than the MkII and MkIII hand pumps, of course; in a career spanning some forty years, Arun also contributed to the development of the Afridev and the VLOM concept and he worked extensively on water quality issues, especially arsenic testing and treatment. His influence on rural water supply programmes stretches far beyond India’s borders.

“I and many others will miss his thoughtful insights into troublesome problems; we shall miss too, his companionship on those long field trips….”

Peter: “Arun was a dear and much admired friend. I had the privilege and pleasure to work with him in Mozambique and Ethiopia and we met several times over the years at handpump meetings. It was an education to talk handpumps with Arun and such was his towering knowledge and authority of handpump issues that his assertions on the topic were always received with little argument.

“But he was much more than a supreme handpump guru – he had an appealing, if somewhat serious, retiring and studious, personality. In essence a supremely nice guy. I shall remember his Arun as genuine and kind, humble, self-effacing with a quick mind who achieved much during a lifetime devoted to our sector and specifically handpumps – and even more specifically the India Mark II (though knew a thing or two about the Afridev too!).

“Farewell Arun – a friend and mentor to all who were fortunate enough to know you.”

Erich: “I do not know what to write. Even though Arun had in the last few years faded out of our life because of his illness. He was and will forever be remembered as the great friend and professional.

“A true handpump guru with many other qualities. I had the privilege to work with him for years very closely. We travelled several trips together and his input into the work was very valuable. As Peter rightly said also the Afridev development profited from his knowledge and experience. Look at the piston. But Arun did not a want to be put into the lime-light.

“One incident will stay with me for ever. Arun visited us in Switzerland and stayed in our house. Our youngest son had a bit of a rough time in school. During my next visit to India Arun gave me a small statue of Ganesh. He mentioned that Ganesh has a calming effect and if we would put the statue in my son’s room it might help him. He was not only a very rational engineer but also a believer.”

Arun leaves behind his wife Krishna, a son Prashant and a daughter Ankur.
